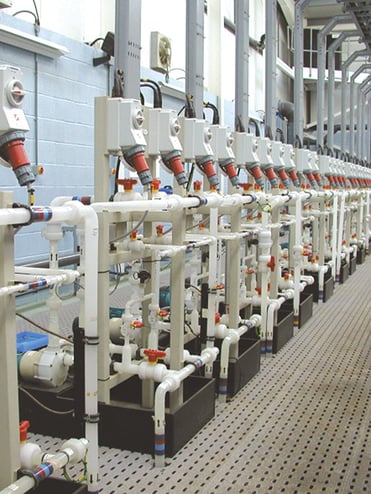

pvdf Installation

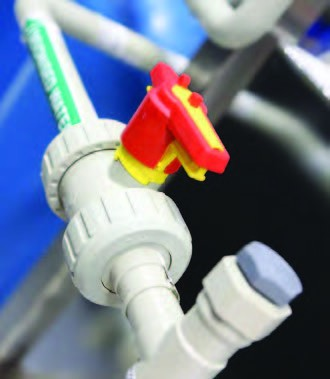

polypropylene-valve-1

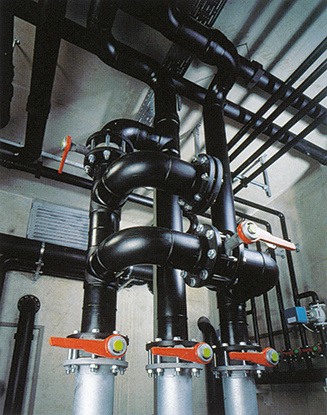

Polyethylene Installation























High Purity Thermoplastic Piping Systems: Ensuring Integrity in Critical Applications

In industries where contamination control is paramount, high purity thermoplastic piping systems play a crucial role. These specialised systems are designed to transport fluids without compromising their purity, making them indispensable in sectors such as pharmaceuticals, semiconductors, food and beverage, and chemical processing. This article delves into the characteristics, materials, applications, installation techniques, maintenance practices, compliance standards, and advanced features of high purity thermoplastic piping systems.

Key Characteristics

Material Composition: High purity thermoplastic piping systems are manufactured from materials like polyvinylidene fluoride (PVDF), polypropylene (PP), polyethylene (PE), and perfluoroalkoxy (PFA). These materials are selected for their chemical resistance, low extractables, and non-reactivity with transported fluids, ensuring minimal contamination.

Manufacturing Standards: To guarantee purity, these systems adhere to stringent manufacturing standards set by organisations such as ASTM (American Society for Testing and Materials) and ISO (International Organisation for Standardisation). These standards ensure consistent quality and performance.

Surface Finish: The internal surfaces of high purity pipes are highly smooth to prevent particle accumulation and bacterial growth. Techniques like electropolishing or specialised coatings are often employed to achieve this finish.

Jointing Techniques: Fusion welding, socket welding, and mechanical joining methods are commonly used to create leak-proof and contamination-free connections. The choice of jointing technique is critical to maintaining system integrity and purity.

Applications

Pharmaceutical and Biotechnology: In pharmaceutical production, maintaining a sterile environment is vital. High purity thermoplastic piping systems are used to transport pure water, buffer solutions, and other critical fluids, ensuring that no contaminants compromise the end products.

Semiconductor Manufacturing: Semiconductor fabrication requires ultra-pure water and chemicals. Any contaminants, even at the molecular level, can affect the quality of semiconductor products. High purity piping systems are essential for maintaining the required purity levels.

Food and Beverage: These systems are used in food and beverage production processes where hygiene and cleanliness are paramount. They ensure that no contaminants are introduced into consumable products, safeguarding consumer health.

Chemical Processing: High purity thermoplastic piping systems are ideal for handling aggressive chemicals without risking contamination. They are used in applications where both purity and chemical resistance are essential.

Laboratories and Research Facilities: In research settings, these systems transport high-purity reagents and solvents, ensuring that experiments and processes are not compromised by contaminants.

Types of High Purity Thermoplastic Materials

Polyvinylidene Fluoride (PVDF): PVDF is known for its excellent chemical resistance, high purity, mechanical strength, and UV resistance. It is widely used in semiconductor, pharmaceutical, and chemical industries.

Polypropylene (PP): PP offers good chemical resistance, high purity, and weldability. It is suitable for less aggressive environments and is common in pharmaceutical and food & beverage industries.

Polyethylene (PE): PE, particularly High-Density Polyethylene (HDPE), provides excellent chemical resistance, high impact resistance, and flexibility. It is used in various industries, including water treatment and chemical processing.

Perfluoroalkoxy (PFA): PFA boasts superior chemical resistance, high-temperature tolerance, and excellent purity levels, making it ideal for extremely aggressive chemical environments, such as those found in semiconductor manufacturing.

Installation Techniques

Fusion Welding: Fusion welding methods include butt fusion, socket fusion, and electrofusion. These techniques provide strong, leak-proof joints that maintain system purity. The process involves heating the pipe and fitting surfaces to a melting point and joining them together to cool and solidify.

Mechanical Joining: Mechanical joining methods such as compression fittings, flanges, and mechanical couplings offer ease of installation and disassembly. However, they may not provide the same purity levels as welded joints. This process uses mechanical components to secure pipes together, often with gaskets to ensure a tight seal.

Chemical Bonding: Chemical bonding, like solvent welding, creates seamless joints by chemically fusing materials. This method involves applying a solvent to the pipe and fitting, causing the surfaces to soften and bond as the solvent evaporates.

Maintenance Practices

Regular Inspection: Regular inspections ensure the integrity and cleanliness of the piping system. The frequency of inspections depends on the application but typically includes scheduled visual inspections and pressure tests.

Cleaning Protocols: Cleaning protocols involve flushing with high-purity water, using chemical cleaning agents, or employing steam. These methods remove contaminants or biofilm that could affect system purity.

Monitoring and Testing: Monitoring and testing involve sampling for chemical and particulate analysis and microbial testing to confirm that the system remains free from contaminants.

Compliance Standards

ASTM Standards: ASTM standards, such as ASTM F1545 for plastic-lined ferrous piping and ASTM D2657 for heat fusion joining of thermoplastic pipe, define material, testing, and performance standards to ensure reliability and purity.

ISO Standards: ISO standards, like ISO 15493 for thermoplastics piping systems for industrial applications and ISO 10931 for PVDF piping systems, provide international consistency and quality assurance.

Industry-Specific Guidelines: Industry-specific guidelines, such as SEMI (Semiconductor Equipment and Materials International) standards for semiconductor applications and MHRA (Medicines and Healthcare products Regulatory Agency) guidelines for food and pharmaceutical industries, ensure tailored standards and regulatory compliance.

Advanced Features

Traceability: Traceability ensures that every component can be traced back to its origin, crucial in high purity applications. This is achieved using barcodes, RFID tags, or serial numbers on pipes and fittings.

Cleanroom Manufacturing: Components are manufactured in cleanroom environments to prevent contamination, essential for industries like pharmaceuticals and semiconductors.

Specialised Coatings and Linings: Specialised coatings and linings, such as PFA-lined steel pipes, enhance the purity and chemical resistance of the piping system.

IPS Flow Systems: Your Partner in High Purity Piping Solutions

IPS Flow Systems, based in Seaham, Co Durham, UK, is a leading provider of high purity thermoplastic piping systems. IPS stocks and delivers all components for various industries, ensuring that no specification is too complex. With a commitment to superior service and expertise, IPS offers next day delivery and unparalleled support to meet your high purity piping needs.

Agru High Purity Piping Products: Agru high purity piping products provide an unrivalled choice of dimensions, components, and special geometries of fittings, which meet and exceed the demands of ultra-pure water (UPW) users. Products like PVDF and PolyPure (natural polypropylene) are ideal for a range of applications, from chemical handling to food processing.

High Purity Manufacturing Process: The production of high purity systems begins with special grades of thermoplastic materials. Using only virgin compounds, product traceability starts at this point, with all batches traceable back to the raw material. Pipe and fittings production occurs under strictly controlled conditions, optimising processing conditions to provide smooth internal surfaces, thereby reducing potential contaminants.

Specialised Products for Critical Applications: IPS Flow Systems offers a range of specialised products, including PURAD® PP-Pure and Polypure piping. These products are produced on designated extrusion and injection moulding equipment, with stringent controls to enhance quality. They are packaged immediately in sealed bags to reach the installation site contamination-free.

Comprehensive Support and Expertise: At IPS, we understand the importance of maintaining high purity standards. Our team is dedicated to providing comprehensive support, from initial consultation to installation and ongoing maintenance. We offer a range of installation techniques, including infra-red non-contact fusion welding and solvent cement welding, tailored to meet the specific needs of each application.

IPS Flow Systems

High purity thermoplastic piping systems are integral to many industries demanding stringent control over contamination and purity levels. Their selection, installation, and maintenance require careful consideration of material properties, application-specific requirements, and adherence to rigorous standards. By ensuring these factors are met, these piping systems provide reliable and safe transport of critical fluids in various high-tech and high-purity applications. With IPS Flow Systems as your partner, you can be assured of the highest quality products, expert service, and prompt delivery to meet all your high purity piping needs.
